Cable Protectors and Cable Ramps for Floor Crossings

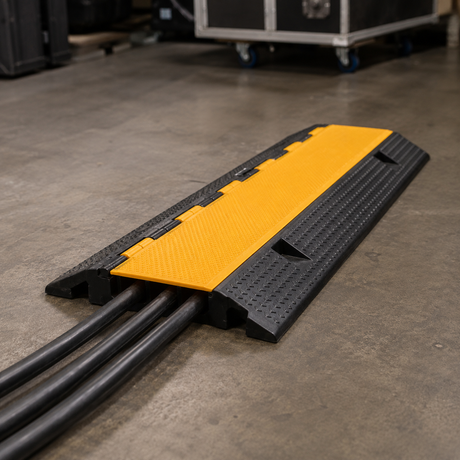

A cable protector carries cables or hoses across a floor, walkway or vehicle route inside a ramped cover. It protects the cable from being crushed or cut, keeps a multi cable run together, and removes the trip hazard a loose lead creates. They are used on construction sites, at events, in warehouses, workshops, offices and plant rooms.

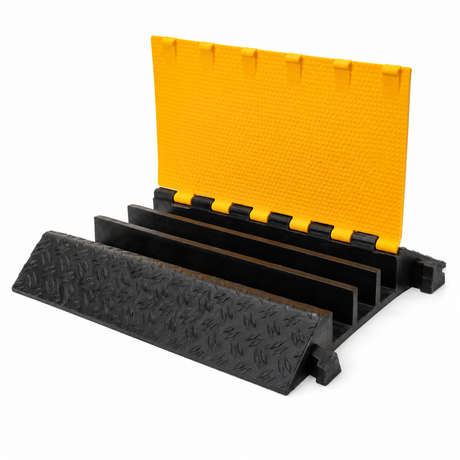

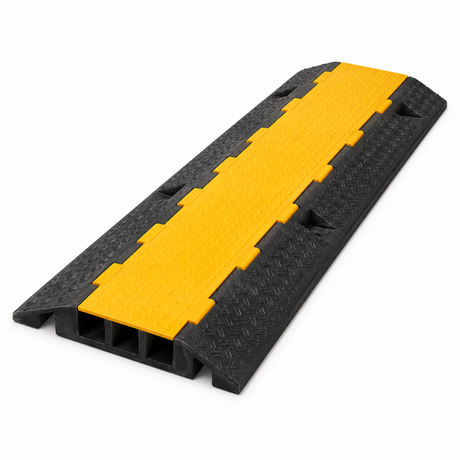

Count the services in the run. A two channel unit suits a power lead plus a data cable, or two hoses. Multi channel units suit several services crossing at the same point. Check the channel width and depth against the cable including its connector, because a plug that will not pass through the channel means the run cannot be installed as planned.

A cable protector is a lower profile cover that keeps cables in a channel and lets people walk over them. A cable ramp is built with a sloped approach on both sides so wheels can roll across it, which suits vehicles, trolleys and pallet trucks. The distinction is the profile and the load rating, not just the name on the listing.

Some can, provided the unit is rated for the load and the wheel type. Cable ramps are designed for vehicle crossings; lighter protectors are for foot traffic and trolleys only. Check the load rating stated on the product page against the heaviest vehicle that will cross, and check the ramp profile suits small wheels as well as large ones.

They remove the trip hazard created by a loose cable, which is the main reason they get specified. They only work if the unit sits flat on the surface and the ramped edge faces the footfall, so a protector on an uneven floor can create a new trip point at its edge. Keep crossings out of doorways and corners where people turn.

Yes, modular units are designed to join end to end so a crossing can run the full width of a walkway or driveway. Join them so the ends line up and the channel stays continuous, and check the joint sits flat rather than stepping. For long runs, check that the joined sections do not lift when a vehicle crosses the middle.

Events and temporary power are the classic use: several leads crossing a walkway or a roadway to a stage, a site office or a generator. Multi channel units carry the services in one crossing, and ramped units let vehicles pass. Plan the crossing point before the event, because moving a cable run after the site is set up is harder than setting it correctly.

They work on carpet and hard floors, but the surface has to be flat enough for the unit to sit without rocking. Carpet pile can stop the ramped edge sitting flush, and uneven concrete or a drainage grate under the unit will make it lift. Check the unit sits flat and the edges do not catch before putting it into service.

Yes, hoses run through cable protectors in the same way as cables, which is why they get used around pressure washers, pumps, welding sets and plant rooms. Check the hose outside diameter against the channel, including any fittings, and keep hoses and cables in separate channels where possible so a leaking hose does not sit against a live cable.

Yes. Cable protectors ship Australia-wide with tracking, and can be delivered to a site address where someone can receive and unload them. Heavier ramp units and bulk orders may affect freight options, so tell us about site access when ordering. Same-day dispatch applies to orders placed before the daily cut-off, and pick-up from Bankstown is available.
