Speed management is one of the most critical elements of any construction site traffic control plan. Get it wrong, and you are creating a high-speed hazard in a zone where workers on foot, heavy plant, and the public all need to coexist safely. Get it right, and you significantly reduce the risk of serious incidents.
This guide covers which speed signs are required on Australian construction and road works sites, the correct sign sizes to use, and the placement rules that keep your site compliant under AS 1742.3.
Note: Speed restriction signage on public roads must comply with AS 1742.3 (Manual of Uniform Traffic Control Devices) and your state's traffic management guidelines. Always check state-specific requirements as they differ between NSW, VIC, QLD, SA, and WA.
Why Speed Restriction Is Not Optional
Under Australian work health and safety law, principal contractors have a duty to manage the risk of vehicle and pedestrian interaction on site. Speed is one of the primary variables that determines the severity of any collision. The research is clear: a pedestrian struck by a vehicle at 50km/h has a significantly lower chance of survival than one struck at 30km/h. On a construction site, the legal and moral case for controlled speed is straightforward.
Aside from safety, speed signage is a condition of most traffic management plans and is audited by state roads authorities on public road works sites. A site without proper speed signs is a site that can be shut down.
The Standard Speed Reduction Sequence
On most road works sites, speed is reduced progressively through a sequence of signs placed in advance of the work zone. A typical sequence for a 100km/h road might look like this:
- 80km/h speed restriction sign (1st advance taper)
- 60km/h speed restriction sign (2nd advance taper)
- 40km/h speed restriction sign (work zone entry)
- 25km/h or 10km/h speed restriction sign (in the immediate work area if workers are on foot)
The principle is a maximum reduction of 20-30km/h per sign in the sequence. Dropping from 100km/h to 40km/h in one sign gives drivers insufficient time to adjust and is not compliant. The step-down sequence is both a safety requirement and a legal one.
CivilSafe stocks the full range of speed signs for construction sites, from road signs including 10km/h, 25km/h, 40km/h, 60km/h, and 80km/h variants, all sized and reflectivity-rated for road works use.
Sign Sizes Required Under AS 1742.3
| Road Environment | Posted Speed | Required Sign Size |
|---|---|---|
| Urban road | Up to 60km/h | 600 x 800mm |
| Urban arterial/rural road | 60km/h to 80km/h | 750 x 900mm or 900 x 1200mm |
| Highway/freeway | 80km/h and above | 900 x 1200mm or 1200 x 1500mm |
Using an undersized sign on a higher-speed road is non-compliant and reduces the reaction distance available to drivers. When in doubt, go larger rather than smaller.
Where to Place Speed Signs
Placement is dictated by the approach speed of the road and the time a driver needs to see, read, and react to the sign before they must be travelling at the new speed. General placement distances from the start of the speed change:
- 60km/h road: First speed reduction sign at minimum 100-150 metres before the taper
- 80km/h road: First speed reduction sign at minimum 150-200 metres
- 100km/h road: First speed reduction sign at minimum 200-250 metres
Signs must be placed on the left side of the road (for traffic on the left), positioned so they are clearly visible without being obscured by vegetation, parked equipment, or other signage. Post height must provide a minimum 1.2 metre clearance from the bottom of the sign to the ground on sealed surfaces.
Do You Need Speed Signs Inside the Site?
Yes. On construction sites where internal vehicle movements occur, speed limits must also be posted within the site boundary. A maximum internal site speed of 10km/h is common in areas where workers are on foot near plant movements. 25km/h is typical for haul roads and internal access routes.
Internal speed signs do not need to comply with the same reflectivity standards as public road signs, but they must be clearly legible and positioned at all site access points and at regular intervals along internal haul routes.
Pair your speed signs with traffic management accessories including delineators, witches hats, and channelling devices to guide vehicles through the speed reduction zone effectively. Also consider speed humps for internal site roads where physical enforcement of speed limits is required.
Temporary Speed Limit Authority
On public roads, reducing the speed limit from the permanent posted limit requires formal authority from the relevant state roads authority. You cannot simply put up a 40km/h sign on a 100km/h road without approval. Your Traffic Management Plan must be submitted to and approved by the roads authority, and the temporary speed restriction must be gazetted or formally authorised before the signs go up.
On private land (such as a construction site, industrial estate, or private access road), you do not need the same formal approval, but you must still document the speed limits in your site safety plan and ensure they are enforced.
Speed Sign Maintenance on Site
Speed signs on road works sites take a beating. Mud, grime, vehicle wash, and UV exposure all degrade legibility over time. Inspect speed signs daily as part of your site safety check. Clean the face of the sign with water if mud or dust is reducing reflectivity or legibility. Replace any sign that is bent, faded, or has been struck by a vehicle. A speed sign that cannot be clearly read is no sign at all.

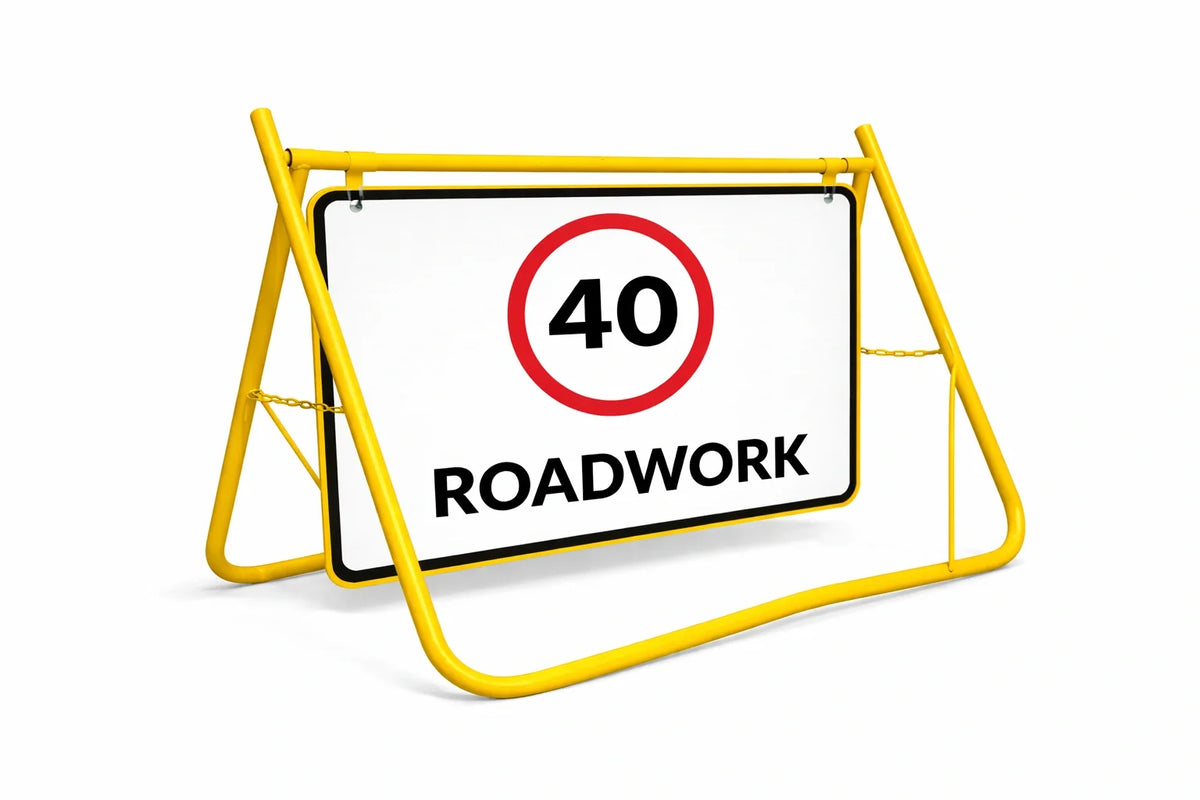

Also check that post-mounted signs remain plumb after rain events (soil movement can cause posts to lean) and that swing stand bases remain properly weighted, particularly on exposed sites where wind loading is significant.
What About End of Works Signs?
Once construction works are complete and vehicles can return to normal speed, the temporary speed restrictions must be formally terminated. This means removing all speed restriction signs, any associated regulatory signage, and reinstating the permanent speed signs if they were removed or covered during the works. Leaving temporary speed signs in place after works are complete is not only a breach of your conditions of approval; it undermines driver compliance with speed controls on future road works sites.
Order Your Speed Signs Before Work Starts
CivilSafe stocks 10km/h to 80km/h construction speed signs. Correct sizes, reflective sheeting, clear pricing. Delivered to site or pick up from Bankstown, NSW. Price Beat Guarantee.
