If you have ever ordered construction signs and wondered whether you need boxed edge or swing stand, you are not alone. Both types are widely used on Australian worksites, but they are designed for different applications and conditions. Picking the wrong one does not just cost you money. It can mean your sign is not compliant, not stable, or simply not visible enough for the conditions on your site.
This guide breaks down exactly how each type works, where each one belongs, and what to look for when ordering.
Both sign types are available at CivilSafe. Browse the full Construction Signs collection for boxed edge and swing stand options across a wide range of traffic control and site safety messages.
What Is a Boxed Edge Sign?
A boxed edge sign gets its name from the rigid aluminium frame around the perimeter of the sign panel. That frame does a few important things. It stiffens the sign so it does not flex or bow in wind. It provides a clean, professional edge finish. And it gives you fixing points to attach the sign to a post, swing stand bracket, or temporary mounting system.
Boxed edge signs are the industry standard for road works and traffic control in Australia. They are the type specified in AS 1742.3 for use on public roads and are what most traffic management plans will refer to when they prescribe a particular sign type.
Where boxed edge signs are used:
- Major road works and public road construction
- Long-duration projects where signs need to stay in place for weeks or months
- High-speed environments (above 60km/h) where sign stability is critical
- Permanent or semi-permanent installations on a post
- Any application where AS 1742.3 compliance is required

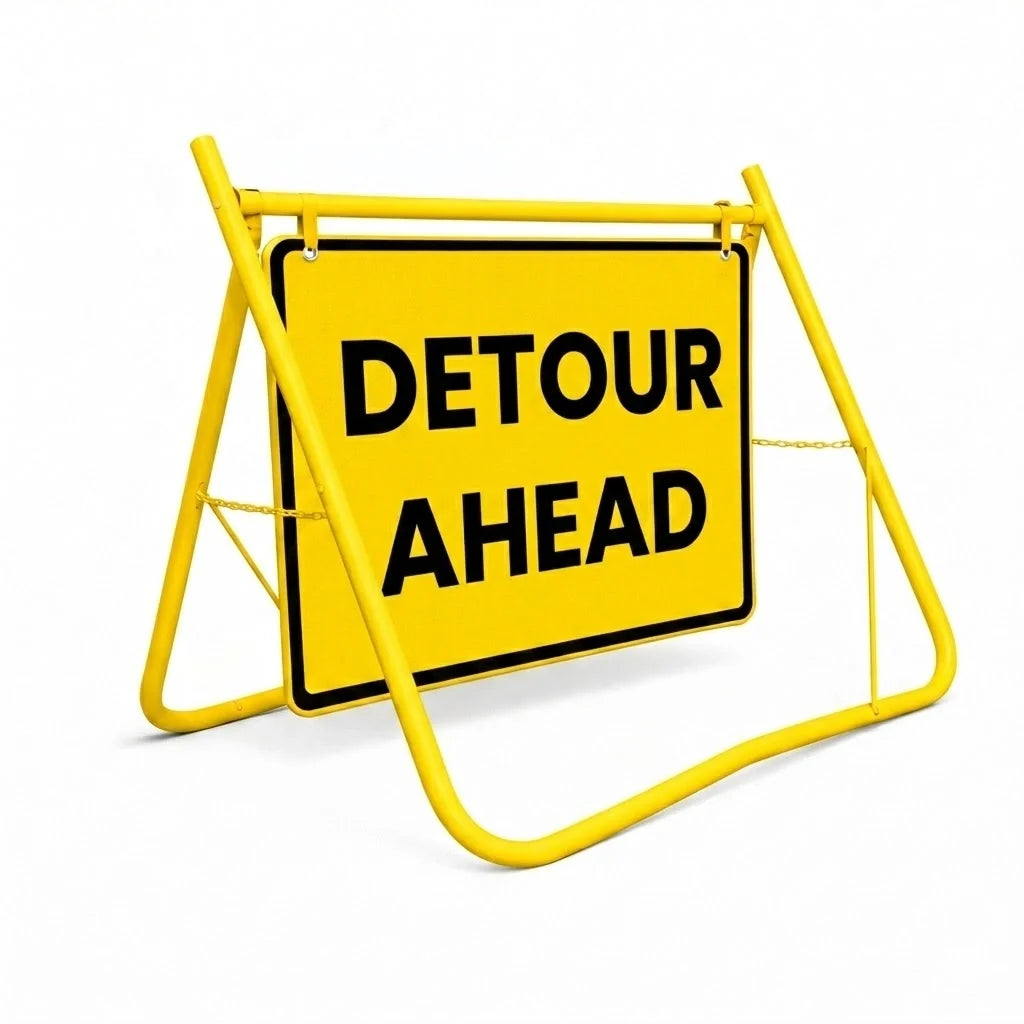

What Is a Swing Stand Sign?
A swing stand sign is a self-contained unit: the sign panel attaches directly to a weighted A-frame base, making it fully portable and quick to set up without any tools. The "swing" refers to the fact that the sign panel can pivot on the frame, which allows it to absorb wind load rather than topple over.
Swing stands are popular on short-term, lower-speed, or pedestrian-focused applications where you need something that can be deployed and moved quickly. You will see them in shopping centre car parks, pedestrian zones, footpath works, and on lower-speed urban roads.
Where swing stand signs are used:
- Short-term works lasting hours or a few days
- Low-speed zones (typically 40km/h or below)
- Pedestrian management inside or around car parks
- Footpath closures and diversions
- Interior warehouse and commercial sites
Head-to-Head Comparison
| Factor | Boxed Edge Sign | Swing Stand Sign |
|---|---|---|
| Setup speed | Moderate (requires post or bracket) | Fast (self-contained, no tools) |
| Stability | Excellent (post-mounted or weighted base) | Good (weighted base, wind-pivot action) |
| Portability | Low (panel + mounting hardware) | High (one piece, easy to carry) |
| Durability | Very high (aluminium frame, long life) | Moderate (suitable for repeated short-term use) |
| Standard | AS 1742.3 specified | Suitable for AS 1742.3 lower-risk applications |
| Best for | Road works, high-speed, long-duration | Pedestrian zones, short-term, low-speed |
| Cost | Higher upfront (panel + mounting) | Lower upfront (all-in-one unit) |
Which Mounting Hardware Do You Need?
If you are going with boxed edge signs, the sign panel is only part of the equation. You also need the right mounting hardware. Options include:
- Galvanised steel posts: The standard permanent or semi-permanent mounting solution. Drive or core into the ground and bolt the sign on. Browse the Galvanised Steel Pole collection for post options.
- Swing stand adaptor brackets: Mount a boxed edge panel onto a swing stand frame. Gives you the stability of a boxed edge sign with the portability of a swing stand. A common combination for traffic control teams.
- Sign clips and fixings: Essential for securing panels to posts without drilling. Find what you need in the Sign Accessories collection.
Can You Mix Both on the Same Site?
Yes, and it is common. A large road works project might use boxed edge signs on the high-speed approach (where AS 1742.3 requires a rigid, post-mounted sign), and swing stands at the work zone entrance where a traffic controller is directing vehicles at low speed. The key is to match the sign type to the risk level and duration of each specific location on site.
Talk to your traffic management planner before ordering in bulk. Your TMP will specify sign types for each location, so ordering against the plan saves you buying the wrong product.
Size and Reflectivity: What You Also Need to Get Right
Sign size and reflectivity are as important as the mounting type. AS 1742.3 specifies minimum dimensions for different road environments. A sign that is the right message but the wrong size is still non-compliant. Reflective sheeting is required for all signs used on public roads, and the class of reflectivity (Class 1, 2, or higher) must match the posted speed of the road.
If you are working on a 60km/h urban road, a Class 1 reflective sign is generally acceptable. For 100km/h highways, Class 2 or higher is typically required. Check your state's traffic management guidelines to confirm the specific requirements for your project.
Also consider pairing your signs with barriers and fencing to create a complete, compliant work zone setup.
How Many Signs Do You Need?
This depends entirely on the scope of your works, the number of active work faces, and the requirements of your TMP. As a rule, plan for a minimum set per work face that includes warning, taper guidance, and regulatory signage. Do not underorder. A site that runs out of signs mid-project and removes a warning sign to cover another location is creating a serious compliance and liability gap.
